BOS1901 Datasheet

Piezo Haptics Made Easy

BOS1901 Piezo Haptic Driver

Better haptics starts with better hardware.

The BOS1901 integrated circuit is a piezo driver with state-of-the-art technology.

With up to 10X power savings over the competition and legacy technologies, built in force sensing, start-up times of less than 300 µs and the industry’s smallest footprint, make sure your next piezo driver is powered by our patented CapDrive integrated circuit architecture.

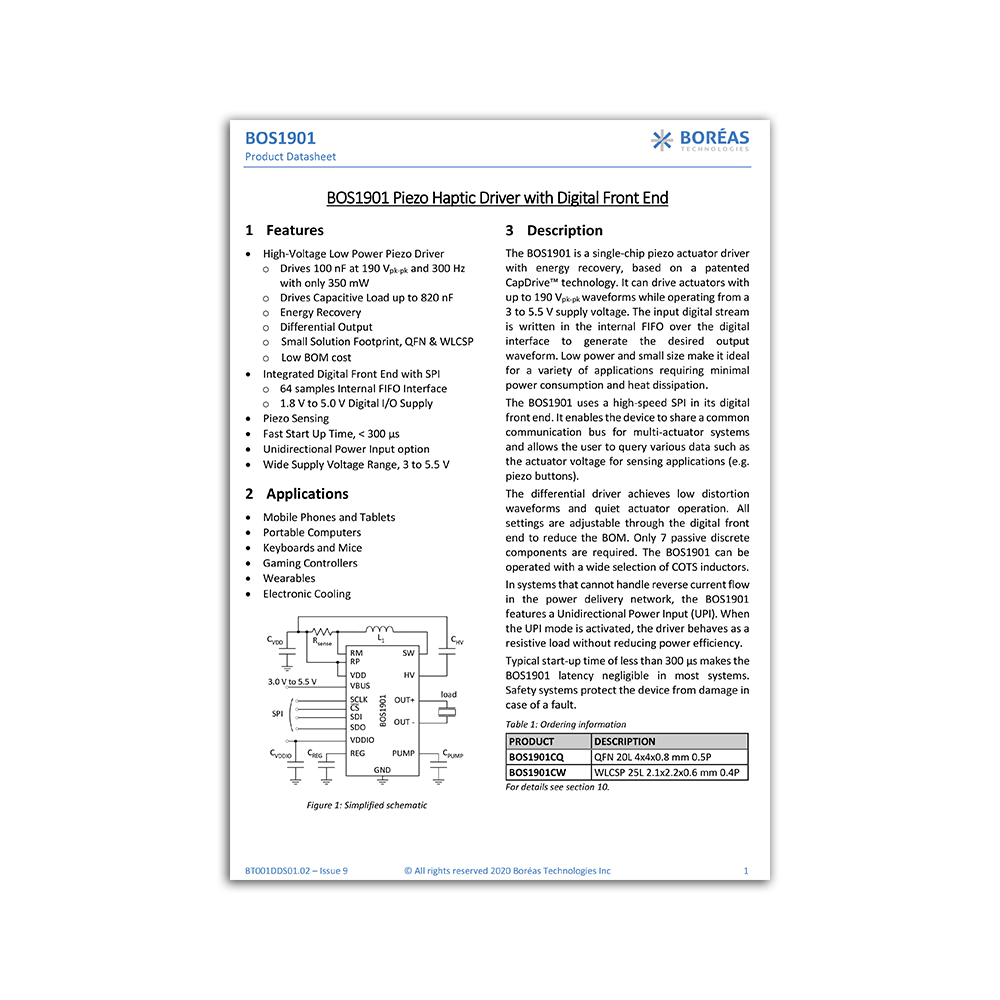

Download the BOS1901 Datasheet
BOS1901CW Product-2

190 Vpk-pk Piezo Haptic Driver Powered by CapDriveTM



The BOS1901 is a single-chip piezo actuator driver with energy recovery, based on our patented CapDrive™ technology. It can drive actuators with up to 190 Vpk-pk waveforms while operating from a 3-5.5 V supply voltage. The input digital stream is written in the internal FIFO over the digital interface to generate the desired output waveform. Low power and small size make it suitable in a variety of applications where power consumption and heat dissipation must be minimized.

The BOS1901 uses a high-speed SPI in its Digital Front End. It enables the device to share a common communication bus for multi-actuator systems and the user to query various data such as the actuator voltage for sensing applications.

The differential driver achieves low distortion waveforms and quiet actuator operation. All settings are adjustable through the digital front end to reduce the BOM. Only 7 passive discrete components are required. The BOS1901 can be operated with a wide selection of commercial off-the-shelf inductors.

In systems that can’t handle reverse current flow in the power delivery network, the BOS1901 features a unidirectional power input (UPI). When the UPI mode is activated, the driver behaves as a resistive load without reducing power efficiency.

Typical start-up time of less than 300 µs makes the BOS1901 latency insignificant in most systems. Safety systems protect the device from damage in case of a fault.

Features

  • High-Voltage Low Power Piezo Driver
    • Drives 100 nF at 190 Vpk-pk and 300 Hz with only 350 mW
    • Drives Capacitive Load up to 820 nF
    • Energy Recovery
    • Differential Output
    • Miniature Solution Footprint, WLCSP 2.1x2.2 mm
    • Small Solution Footprint, QFN 4x4 mm
    • Low BOM cost
  • Integrated Digital Front End with SPI
    • 64 samples Internal FIFO Interface
    • 1.8 V to 5.0 V Digital I/O Supply
  • Piezo Force Sensing
  • Fast Start Up Time, < 300 µs
  • Unidirectional Power Input option
  • Wide Supply Voltage Range, 3 to 5.5 V

Parametric Specifications

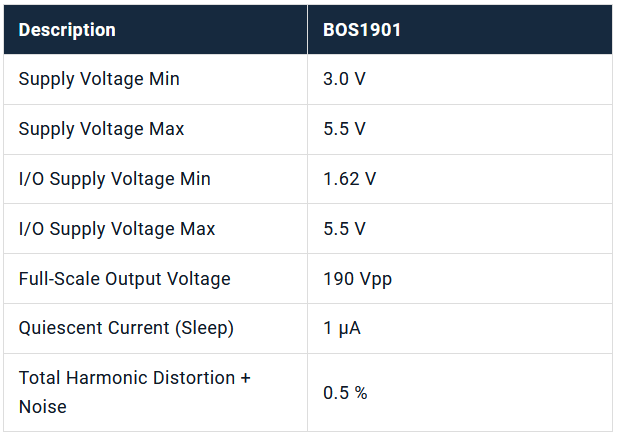

BOS1901 Parametrics Specs
